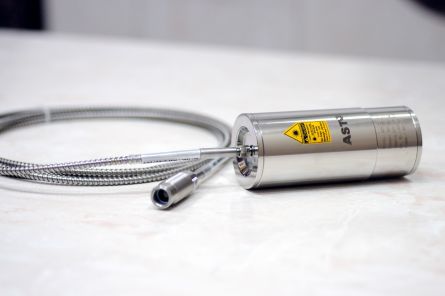

Digital pyrometer with mono fiber A250+FOPL 300 to 2500°C

A250+ FO PL and A450+ FO PL is a highly accurate digital single color Fiber Optic pyrometer to provide high performance and low maintenance of non contact
temperature measurement in demanding industrial and R&D environments.
The IR pyrometer parameters can be selected via the key pads on the back panel.
The settings are displayed on the OLED Display. In the measuring mode real time temperature is displayed.

The pyrometers are equipped with RS-485, analog outputs 0/4….20.

Switching laser ON/OFF does not effect the measurement

Product reference : A250+ FO PL datasheet FP A250+ FO PL

Availability : 4 weeks

Technical sheets

Consult

Detailed description

Features	Digital IR pyrometer with mono fiber optic cable, Laser Pilot light, Digital Interface, Analog output, Parameterizing Keys & OLED Display
Temperature Range (Sub Range Adjustable)	250°C – 1800°C (482°F – 3272°F) 300°C – 2500°C (572°F – 4532°F)
Emissivity	0.1….1.0 adjustable
Spectral Range	1.6μm
Photodetector Type	InGaAs
Distance to Spot Size Ratio	100:1(OH l) 200:1(OH ll) 200:1(OH ll – V) 400:1(OH lll – V)
Response Time	2 msec. adjustable upto 10 sec
Accuracy	±0.3% of the measured value +1°C
Repeatability	0.1% of reading in °C +1°C
Analog Output	0-20mA, 4-20mA (User selectable)
Digital Output	Rs485
Sighting	Laser pilot
Operating Temperature Range	Pyrometer 0 – 70°C (32 -158°F) Optical Head & Fiber Optic Cable upto 250°C (482°F)
Power Supply	12V to 28V DC with reverse polarity protection
Power Consumption	Max. 4 watt
Protection Class	IP65
Storage Temperature	-20 to 70°C (-4 to 158°F)
Dimensions	Dia= Ø 56mm (2.20in), L=199.5mm (7.85in)
Weight	1.2kg (2.64lbs)
