Miniature pressure sensor – P M8x1 type

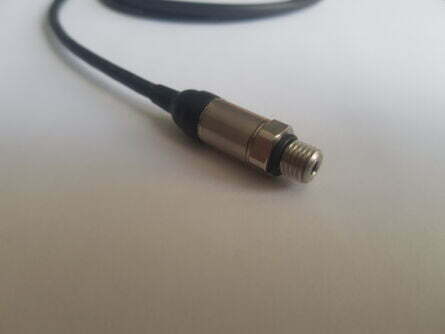

This miniature pressure sensor is designed to perform static and dynamic measurements in a corrosive environment.

The internal cell sensor is compatible with a large number of corrosive or conducting fluids.

As option we can propose an integrated electronic system ables to deliver an analogical tension signal.

Standard is mV/V

First sensor is given for 0 to 1 bar but we can extend to more than 100 bar depending of the application

Product reference : P-M8X1 Series FP4032

Availability : 6 WEEKS

Technical sheets

Detailed description

Parameter	Min.	Typ.	Max.
Pressure, measuring range ⁽¹⁾	0 bar g	–	1 bar g
Pressure overload (rated) ⁽²⁾	–	–	2x
Pressure, burst (rated) ⁽³⁾	–	–	3x
Accuracy ⁽⁴⁾	-0.2 (%FS)	–	0.2 (%FS)
Thermal shift, zero	-0.03 (%FS / °C)	–	0.03 (%FS / °C)
Thermal shift, sensitivity	-0.02 (% / °C)	–	0.02 (% / °C)
Long term stability	–	0.2 (% FS / year)	–
Output signal, zero	-5 mV	0	5 mV
Output signal, full scale	90 mV	100 mV	110 mV
Power supply UB	–	10 VDC	15 VDC
Input impedance	10 kΩ	–	–
Output impedance	2.5 kΩ	3 kΩ	4.5 kΩ
Natural frequency	–	35 kHz	–
Dielectric strength ⁽⁵⁾	100 MΩ	–	–
Pressure port	M8 x 1 male
Dimensions	see drawing (mm)
Wetted materials	Stainless steel 316L
Sealing	Viton o-ring
Electrical connection	Cable, 1 m, shielded, 4 AWG 26 wires
Wiring	+IN (rd), -IN (bk), +OUT (wh), -OUT (bl) –
Ingress protection rating	IP67
Temperature, compensated	0 °C	–	60 °C
Temperature, operating	0 °C	–	100 °C
Temperature, storage	-40 °C	–	150 °C
Label Serial number	(Laser engraved / electro-etched)
Weight (incl. cable)	–	–	40 g
