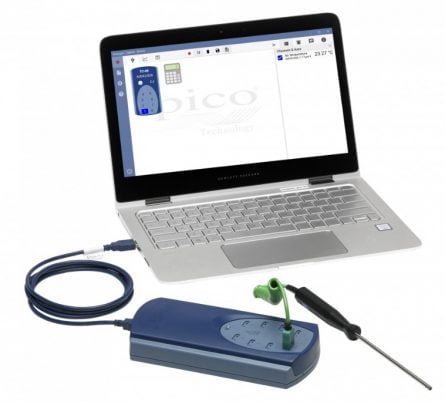

Temperature logger with USB output -EN DAT T° 8V

This module measures and records up to 8 thermocouples simultaneously, with 20-bit resolution and high precision.

This device supports 8 types of thermocouples (B, E, J, K, N, R, S, T).
The temperature measuring range starts at –270 up to +1820 ° C.
Connection to the PC through the USB port

A software provided is used to graphically display and record the values.
The PC also allows the configuration of the channels.

Product reference : -EN DAT T° 8V suivant FP I 2637

Availability : 1 week

Technical sheets

Consult

Detailed description

Integrated cold junction compensation

Up to 10 measurements per second

Connection and power supply via USB

Support for multiple units on a single PC

Supplied with data logging software

USB 2.0 connectivity

USB 2.0 Oscilloscope Connector Type, Type B

Power supply USB port

Dimensions 201 x 104 x 34 mm

Temperature range, service 0 to 50 ° C

Temperature range, service, for the stated accuracy 20 to 30 ° C

Temperature range, storage – 20 to + 60 ° C
